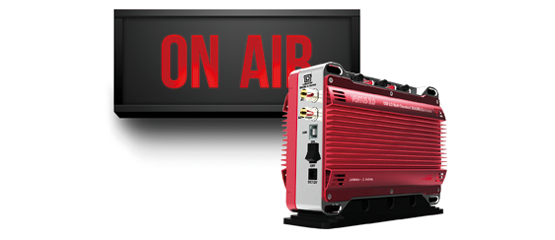

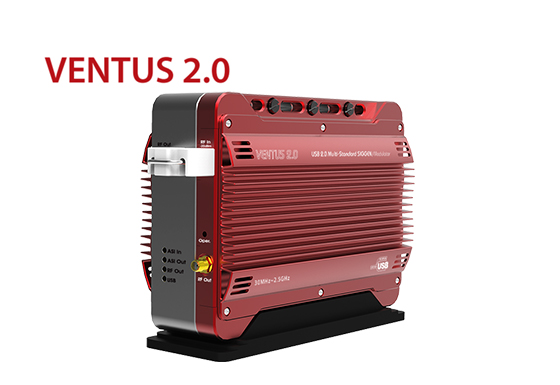

VENTUS 2.0 多制式數字信號發生器集復用器和調制器于一體，外形小巧、方便攜帶，專為芯片方案銷售、工程應用及產品展覽演示提供最佳的數字信號源。
您若對該產品感興趣，歡迎通過電話或微信公眾號進行進一步溝通、查詢！

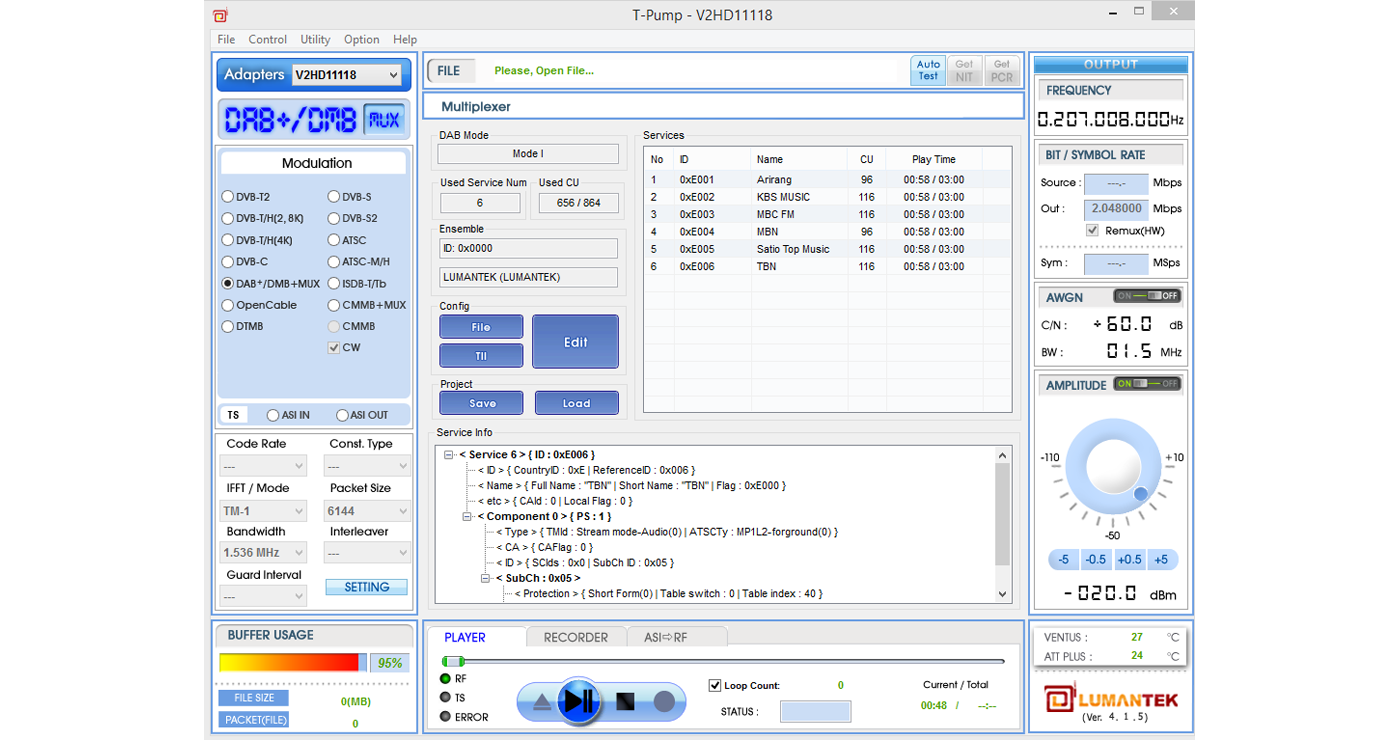

Ventus 2.0 是一款使用 USB 2.0 的便攜式多標準信號發生器。它支持所有常見的地面廣播到衛星信號。使用T-PUMP（隨附軟件）可以很容易地從一種調制切換到另一種調制。
Ventus 2.0 可以發出 30 MHz 至 2.5 GHz 的信號。
許多調制都可以播放。包括：ATSC、DVB-T/H、DVB-S2、DVB-T2、DVB-C、DTMB、DAB/DAB+/T-DMB、ISDB-T/B、開放式電纜、CMMB、ATSC MDTV、DAB+/DMB多路復用器。
基礎款Ventus 2.0 配備 -20dBm 的固定信號功率。通過添加衰減器，您可以將功率從-110dBm擴展到+7dBm。

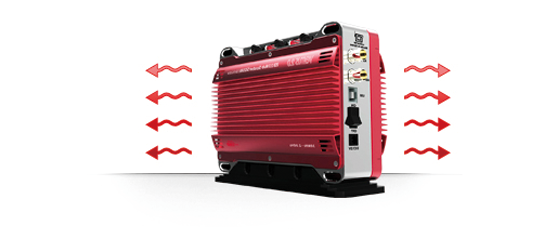

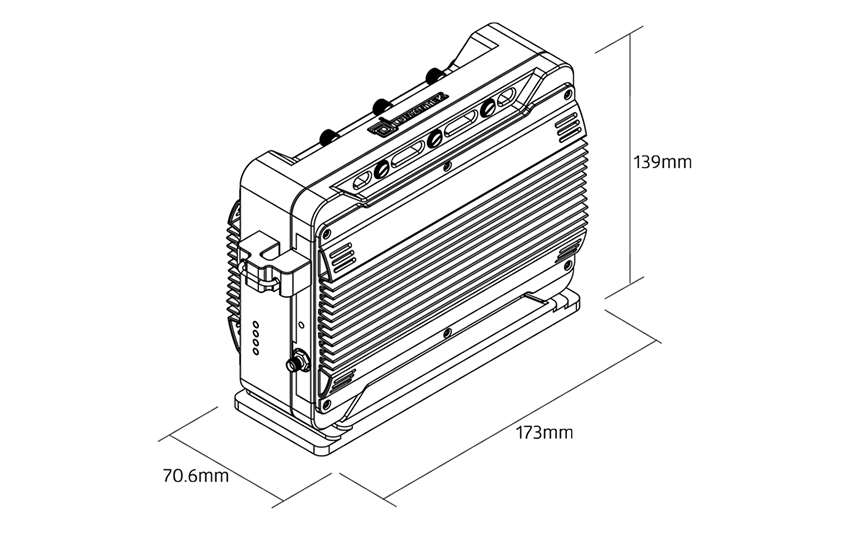

Ventus 2.0 采用無風扇散熱設計。它具有出色的移動性和緊湊的設計。

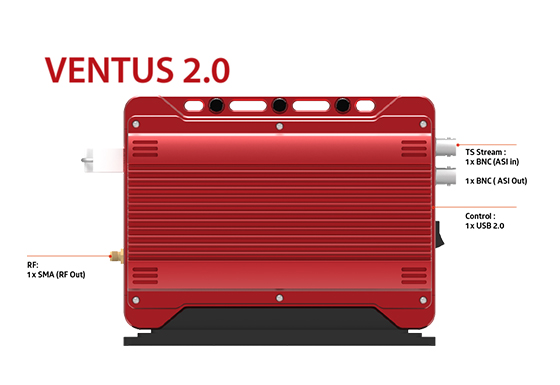

DVB ASI-In (Base Line Frame)
| DVB-ASI (INPUT) | Parameter | Value |
| Buffer | 8 MB | |
| Connector type | BNC (75Ω) |
DVB ASI-Out (Base Line Frame)
| DVB-ASI (OUTPUT) | Parameter | Value |
| Buffer | 8 MB | |
| Connector type | BNC (75Ω) |
RF Upconverter Specification
| RF OUT | |
| Input Voltage | 1 V p-p |
| Input Impedance | 50 Ω |
| Power Requirement | DC 12V (1.3A), DC 5 V (910mA) |
| RF Out Frequency | 30 MHz ~ 2.5 GHz |
| Range |
-20 dBm (+7dBm ~ -110 dBm under 1GHz & +3 dBm ~-110 dBm above 1 GHz to 2.5 GHz) |
| Resolution | 0.1 dB |
| Accuracy | ± 1 dB |
| Connector | SMA (50Ω) |
| Spurious | >60 dB |
| Phase Noise | -95 dBc @ 10 KHz offset |
ATSC-MDTV Modulation Specification (Optional)
| Multiplex | |
| RS Frame Mode | Single Frame, Dual Frame |
| SCCC Block Mode |
Separate Block Mode Paired Block Mode |
| SCCC Bitrate | 1/2, 1/4 |
| RS Coding | (211,187), (223,187), (235,187) |
| Support |
Service file (IP format) Ensemble file (IP format) |
| Modulation | |
| Modulation Mode | 8-VSB (ATSC and ATSC -MDTV) |
| Symbol Rate | 10.76 Ms/s |
| Spurious | >60 dB |
| Phase Noise | -95 dBc @ 10 KHz offset |
DVB-T/H Modulation Specification (Optional)
| Modulation | |
| Modulation Mode | QPSK, 16 QAM, 64 QAM |
| Transmission Mode | 2K, 4K, 8K |
| nbsp;Channel bandwidth | 5, 6, 7, 8 MHz |
| Convolution Code Rate | 1/2, 2/3, 3/4, 5/6, 7/8 |
| Guard Interval | 1/4, 1/8, 1/16, 1/32 |
CMMB (STiMi) Modulation Specification (Optional)
| Modulation + Multiplex | |
| Modulation Mode | CMMB(STIMI) |
| Compliant | CMMB GY/T220. 1/2006 and GY/T 220.2/2006 |
| Support | Logical Channel Setting |
| Byte Interleave Mode | Mode 1, Mode 2, Mode 3 |
| RS Coding | (240, 240), (240,224), (240,192), (240, 176) |
| Constellation | BPSK, QPSK, 16QAM |
| LDPC Bitrate | 1/2, 3/4 |
| Signal Bandwidth | 8 MHz |
ISDB-T & ISDB-B Modulation Specification (Optional)
| Modulation | |
| Modulation Mode | ISDB-T Layered OFDM |
| Compliant | ARIB STD - B31 |
| Support | Japan ISDB-T & Brazil ISBD-B |
| TMCC Encoding | Fully Supported |
| Segment | Full-seg and 1-seg Supported |
DAB/DAB+/T-DMB Modulation Specification (Optional)
| Modulation | |
| Modulation Mode | OFDM/ D-QPSK |
| Compliant | EN300 401 |
| Support | TM1, TM2, Tm3, TM4 In Band III |
| Reconfiguration Test | Dynamic Reconfiguration Support |
| ETI Pattern Supported | Slide show, BIFS, DAB+, BWS, TPEG, Visual Radio, China DMB ( H.264+ AAC3) ETI |
